Duo Single Sign-On for Microsoft 365

Last Updated: July 29th, 2021

Duo offers a variety of methods for adding two-factor authentication and flexible security policies to Microsoft 365 logins, complete with inline self-service enrollment and Duo Prompt.

Duo Federal customers or those looking for an on-premises SSO solution: try Duo Protection for Microsoft 365 with Duo Access Gateway.

Overview

As business applications move from on-premises to cloud hosted solutions, users experience password fatigue due to disparate logons for different applications. Single sign-on (SSO) technologies seek to unify identities across systems and reduce the number of different credentials a user has to remember or input to gain access to resources.

While SSO is convenient for users, it presents new security challenges. If a user's primary password is compromised, attackers may be able to gain access to multiple resources. In addition, as sensitive information makes its way to cloud-hosted services it is even more important to secure access by implementing two-factor authentication.

About Duo Single Sign-On

Duo Single Sign-On is our cloud-hosted SSO product which layers Duo's strong authentication and flexible policy engine on top of Microsoft 365 logins. Duo Single Sign-On acts as an identity provider (IdP), authenticating your users using existing on-premises Active Directory (AD) and prompting for two-factor authentication before permitting access to Microsoft 365.

Once you federate a custom domain your Microsoft Online tenant with Duo Single Sign-On, all Microsoft 365 applications will redirect those federated users to Duo when they sign in, while cloud-only (non-federated) users continue to log in using the Microsoft online sign-in form.

Duo Single Sign-On is available in Duo Beyond, Duo Access, and Duo MFA plans, which also include the ability to define policies that enforce unique controls for each individual SSO application. For example, you can require that Salesforce users complete two-factor authentication at every login, but only once every seven days when accessing Microsoft 365. Duo checks the user, device, and network against an application's policy before allowing access to the application.

If you're interested in a Duo solution for Microsoft 365 that doesn't require installing any on-premises Duo components and allows Duo to be applied per Microsoft 365 application (i.e. required for SharePoint but not Yammer), see our instructions for Duo for Azure Active Directory Conditional Access.

Configure Single Sign-On

Before configuring Microsoft 365 you'll first need to enable Duo Single Sign-On for your Duo account and configure a working Active Directory authentication source.

Microsoft 365 requires the use of Active Directory as your authentication source.

Prepare your Microsoft Tenant for Federation

Add Custom Domains to Microsoft 365

In order to federate your Microsoft 365 tenant with an external identity provider (like Duo Single Sign-On) you must have added a custom domain to Microsoft 365. You cannot federate your "onmicrosoft.com" domain. Additionally, the custom domain you have added to Microsoft 365 cannot be set as the default domain.

It is recommended that you have a tenant administrator account in your "onmicrosoft.com" so you don't lock yourself out of your tenant.

Enable Directory Synchronization in Microsoft 365

Microsoft 365 requires that users are already provisioned inside Microsoft 365 when an authentication attempt happens. You will need to sync users from your Active Directory to your Microsoft 365 account.

If you previously configured directory synchronization between your on-premises AD domain and Microsoft 365, skip these steps and proceed to Create the Microsoft 365 Application in Duo.

  1. Log in to the Office Admin portal as the tenant administrator and open the Sync users from your ‎Windows‎ Server ‎Active Directory‎ setup action. Click Get Started to begin setup and step through the guided prompts.

  2. On a computer joined to your AD domain open PowerShell and run Install-Module MSOnline as described here under Step 1, substep 2. to install the Microsoft Azure Active Directory Module for Windows PowerShell.

  3. When prompted to download and run Azure AD Connect on the same computer as the step above, do not use the "Express Settings" and instead select Customize to perform a Custom installation of Azure Active Directory Connect.

  4. When on the "User sign-in" page of the Microsoft Azure Active Directory Connect tool select Do not configure as the "Sign On method". When on the "Identifying Users" page select mS-DS-ConsistencyGuid from the "Source Anchor" drop-down.

    Note: If you've configured your Active Directory authentication source to communicate with your domain controllers over Global Catalog ports you will need to update the Global Catalog to replicate the attribute you chose as your Source Anchor. You can do this by:

    1. Open up "Active Directory Schema" MMC snap-in as a domain administrator. Navigate to the "Attributes' section.
    2. Locate and double-click on the attribute name used for the Source Anchor, in the pop-up check the box "Replicate this attribute to the Global Catalog".
    3. Click Apply and OK.

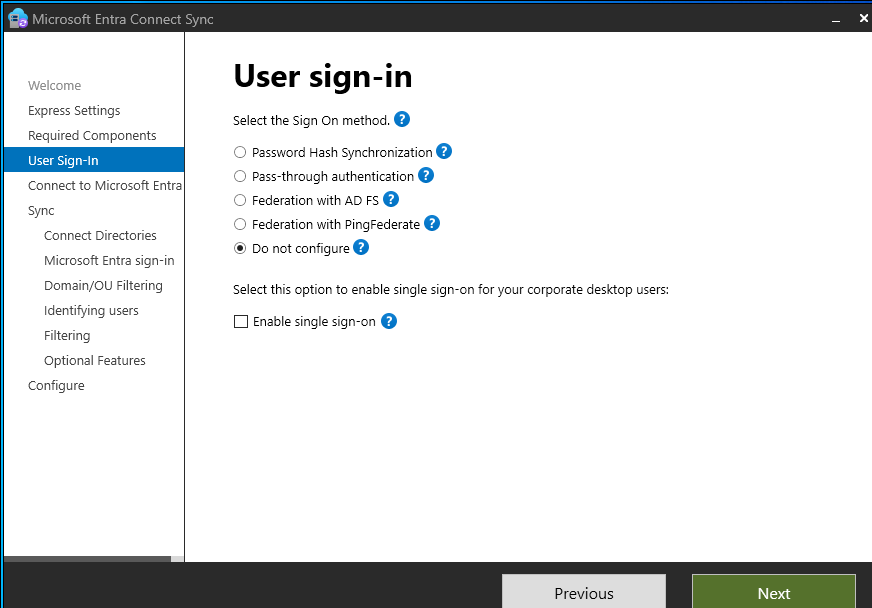

    Microsoft Azure Active Directory Connect User sign in page

  5. Verify successful Active Directory Synchronization and activate Office 365 licensing for unlicensed synchronized users.

Create the Microsoft 365 Application in Duo

  1. Log on to the Duo Admin Panel and navigate to Applications.

  2. Click Protect an Application and locate the entry for Microsoft 365 with a protection type of "2FA with SSO hosted by Duo (Single Sign-On)" in the applications list. Click Protect to the far-right to start configuring Microsoft 365. See Protecting Applications for more information about protecting applications in Duo and additional application options. You'll need the information on the Microsoft 365 page under Downloads later.

  3. The Microsoft domain name is the custom domain you have verified in Microsoft 365 and the domain at the end of your users' email addresses. You will need to create a separate Microsoft 365 application in the Duo Admin Panel for each custom domain.

  4. You can optionally select to Enable WS-Trust next to "WS-Trust Configuration" if you have users that log in with Azure AD Joined machines or mail clients that do not support Modern authentication. Office clients will also be required to reauthenticate less often when WS-Trust is enabled. When this option is configured users logging in with WS-Trust will bypass Duo 2FA. If this option is not chosen, any mail client that does not support Modern auth will not be able to log in and some other clients may be required to reauthenticate more frequently.

    The user's status in Duo and the effective enrollment policy of the Microsoft 365 application will be checked against Duo before authentication completes. If the effective New User policy for the Microsoft 365 Duo application is one that enforces enrollment (like "Require enrollment" or "Deny Access"), then any user logging in with WS-Trust authentication must exist in Duo even though 2FA approval isn't required during Microsoft 365 WS-Trust authentication. If your Duo Single Sign-On Active Directory authentication source has the "Duo username attribute" populated, the value of this attribute is what Duo will check.

    Ensure that users logging in with WS-Trust authentication through Duo are not also required to complete Azure MFA. If a policy applied to the WS-Trust authentication users enforces Azure MFA, WS-Trust authentication fails, preventing access.

    You can restrict access to WS-Trust authentications by using the settings below:

    • Host-based Access Control allows you to limit which IP addresses can use WS-Trust authentication. You can configure to either "Allow all IPs", "Allow only these IPs", or "Deny only these IPs". You can specify a block of IP addresses, IP ranges, or CIDRs as a comma-separated list.

    • Agent-based Access Control allows you to limit which services can authenticate with WS-Trust. You can "Allow all user agents" or "Permit only certain user agents". When permitting only certain user agents you'll be asked to choose which user agents to permit, you can select "Allow legacy mail clients" and "Allow Azure AD Join computer logins"

    • Group-Based Access Control allows you restrict WS-Trust authentication by Duo groups. Check the box next to Restrict WS-Trust to specific Duo Groups. A new text field will appear that will let you select Duo groups, only users of these groups be allowed to perform WS-Trust authentications.

  5. Microsoft 365 uses the Mail attribute and Source Anchor attribute when authenticating.

    We've mapped Mail attribute and Source Anchor attribute to Active Directory source attributes as follows:

    Duo Attribute Active Directory
    Mail attribute userPrincipalName
    Source Anchor attribute mS-DS-ConsistencyGuid

    If you are using non-standard Mail or Source Anchor for your Azure Active Directory sync, check the Custom attributes box and enter the name of the AD attributes you wish to use instead.

  6. You can adjust additional settings for your new Microsoft 365 application at this time — like changing the application's name from the default value, enabling self-service, or assigning a group policy.

  7. Scroll to the bottom of the page and click the Save button.

  8. Under the "Downloads" section next to "PowerShell script" click Download PowerShell script. You'll need this file later.

    Duo Microsoft 365 Application Settings

Duo Universal Prompt

The new Universal Prompt provides a simplified and accessible Duo login experience for web-based applications, offering a redesigned visual interface with security and usability enhancements.

Universal Prompt Traditional Prompt
 Duo Push in Universal Prompt  Duo Push in Traditional Prompt

We've already updated the Duo Microsoft 365 application hosted in Duo's service to support the Universal Prompt, so there's no action required on your part to update the application itself. You can activate the Universal Prompt experience for users of new and existing Duo Microsoft 365 applications from the Duo Admin Panel.

Before you activate the Universal Prompt for your application, it's a good idea to read the Universal Prompt Update Guide for more information about the update process and the new login experience for users.

Activate Universal Prompt

Activation of the Universal Prompt is a per-application change. Activating it for one application does not change the login experience for your other Duo applications.

The "Universal Prompt" area of the application details page shows that this application is "New Prompt Ready", with these activation control options:

  • Show traditional prompt: (Default) Your users experience Duo's traditional prompt when logging in to this application.
  • Show new Universal Prompt: Your users experience the Universal Prompt when logging in to this application.

Universal Prompt Info - Application Ready for Universal Prompt

Enable the Universal Prompt experience by selecting Show new Universal Prompt, and then scrolling to the bottom of the page to click Save.

Once you activate the Universal Prompt, the application's Universal Prompt status shows "Update Complete" here and on the Universal Prompt Update Progress report.

Universal Prompt Info - Universal Prompt Activation Complete

Should you ever want to roll back to the traditional prompt, you can return to this setting and change it back to Show traditional prompt.

Universal Update Progress

Click the See Update Progress link to view the Universal Prompt Update Progress report. This report shows the update availability and migration progress for all your Duo applications in-scope for Universal Prompt support. You can also activate the new prompt experience for multiple supported applications from the report page instead of visiting the individual details pages for each application.

Update Your Search Attributes in Duo

  1. While logged into the Duo Admin Panel navigate to Single Sign-On.

  2. On the "Single Sign-On" page click on the name of your Active Directory authentication source.

  3. On your Active Directory authentication source page scroll down to Email attributes. Click Add attribute, a new text field will appear.

  4. If you left the Mail attribute in the last section configured to be userPrincipalName enter userPrincipalName into the field, otherwise enter the value you configured.

  5. Scroll to the bottom of the page and click Save.

Enable AD Federation to Microsoft 365 Using Duo SSO

The transition of your Microsoft 365 tenant from "managed" to "federated" is typically quick but Microsoft states that it can take two hours or more. Please plan accordingly when enabling federation.

  1. Log on to the domain-joined computer where you installed the Microsoft Azure Active Directory Module for Windows PowerShell, and the Azure AD Connect tool.

  2. Copy the PowerShell file you downloaded earlier onto this computer.

  3. Launch Windows PowerShell as an administrator.

  4. Navigate to the directory the PowerShell file is located in and paste the command below into the PowerShell terminal swapping out "Microsoft 365 - Single Sign-On.ps1" with the name of your PowerShell file. The PowerShell script is unsigned when downloaded from Duo, so specifying -ep ByPass grants a one-time exception to your PowerShell execution policy in order to run the script.

    powershell -ep ByPass "&'.\Microsoft 365 - Single Sign-On.ps1'"

  5. The PowerShell script will start to run. It will inform you of the steps it will take and ask for your confirmation along the way. Follow the prompts to federate your domain to Duo Single Sign-On. You'll be required to provide a tenant administrator username and password during the flow to complete the federation. If you are running this script on a Windows Server operating system and Internet Explorer Enhanced Security Mode is enabled you may need to add websites used during the authentication process to your trusted sites.

See the Single Sign-On Roadmap at the Microsoft TechNet site for more information about configuring SSO for Microsoft 365 for federation.

Verify SSO

Navigate to https://login.microsoftonline.com and enter your Microsoft 365 email address (with no password). You will be automatically redirected to Duo Single Sign-On to complete authentication. Enter your primary directory logon information, approve Duo two-factor authentication, and get redirected back to Microsoft 365 after authenticating.

Duo Single Sign-On Login and Authentication Prompt

You can also log into Microsoft 365 using Duo Central, our cloud-hosted portal which allows users to access all of their applications in one spot. Link to Microsoft 365 in Duo Central by adding it as an application tile. Once the tile has been added, log into Duo Central and click the tile for Microsoft 365.

Congratulations! Your Microsoft 365 users now authenticate using Duo Single Sign-On.

Enable Remembered Devices

To minimize additional Duo two-factor prompts when switching between Microsoft 365 and your other Duo Single Sign-On applications, be sure to apply a shared "Remembered Devices" policy to your applications.

Federating Additional Domains

You can federate each domain inside of your Microsoft 365 tenant except for your default domain and your "onmicrosoft.com" domain.

Repeat the following steps for each additional domain:

  1. Create the Microsoft 365 Application in Duo
  2. Enable AD Federation to Microsoft 365 using Duo SSO
  3. Verify SSO

If you have more than one Microsoft 365 application added in Duo you'll see a message at the top of Microsoft 365 application pages in the Duo Admin Panel informing you to assign permitted groups to your applications.

This is recommended if you're using Duo Central because by default every user can see every application in Duo Central unless permitted groups are applied.

Duo Microsoft 365 Banner

Office Client Access

When you log in to Microsoft 365 for the first time after federation using an Office application, you'll see the Duo Single Sign-On primary login page within the Office application, followed by the Duo authentication prompt.

Mail Clients and Azure AD Join

Mail clients that do not support Modern authentication such as Thunderbird or Android Mail will not be able to log in unless the WS-Trust setting is enabled in the Create the Microsoft 365 Application in Duo section. This is because those clients are unable to display a browser to allow users to log in and must instead log in using only an email address and password via IMAP, POP3, and SMTP logins. If the option is enabled users will continue to log into their mail clients using only their email address and password.

Azure AD Joined devices use WS-Trust to refresh the Primary Refresh Token (PRT) that lets it communicate and authenticate with Azure. If WS-Trust is not enabled these devices may need to log in with modern authentication frequently to refresh the PRT.

Service Accounts

If you use service accounts to send e-mails from devices that don't support Modern Authentication, such as copiers, printers, or scanners, you can use the WS-Trust setting in the Create the Microsoft 365 Application in Duo section to allow those accounts to continue to send e-mail. You will need to create Duo user accounts for the service accounts.

Troubleshooting

Need some help? Take a look at our Microsoft 365 Knowledge Base articles or Community discussions. For further assistance, contact Support.
