Duo Single Sign-On for JFrog

About Duo Single Sign-On

Duo Single Sign-On is our cloud-hosted SSO product which layers Duo's strong authentication and flexible policy engine on top of JFrog logins using the Security Assertion Markup Language (SAML) 2.0 or OpenID Connect (OIDC) authentication standards. Duo Single Sign-On acts as an OpenID provider (OP), authenticating your users using existing on-premises Active Directory (AD) or any SAML 2.0 IdP and prompting for two-factor authentication before permitting access to JFrog.

Duo Single Sign-On is available in Duo Premier, Duo Advantage, and Duo Essentials plans, which also include the ability to define policies that enforce unique controls for each individual SSO application. For example, you can require that Salesforce users complete two-factor authentication at every login, but only once every seven days when accessing JFrog. Duo checks the user, device, and network against an application's policy before allowing access to the application.

Configure Single Sign-On

Before configuring JFrog with Duo SSO using OpenID Connect (OIDC) authentication you'll first need to configure a working authentication source.

Once you have your SSO authentication source working, continue to the next step of creating the JFrog application in Duo.

When configuring an application to be protected with Duo Single Sign-On you'll need to send attributes from Duo Single Sign-On to the application. Active Directory will work with no additional setup, but if you used a SAML identity provider as your authentication source please verify that you configured it to send the correct SAML attributes.

These default attributes automatically map certain attributes from your authentication source.

Create the JFrog Application in Duo

1. Log in to the Duo Admin Panel and navigate to Applications → Application Catalog.

2. Locate the entry for JFrog with the "SSO" label in the catalog. Click the + Add button to start configuring JFrog. See Protecting Applications for more information about protecting applications with Duo and additional application options. You'll need the information on the JFrog page under Metadata later.

3. No active Duo users can log in to new applications until you grant access. Update the User access setting to grant access to this application to users in selected Duo groups, or to all users. Learn more about user access to applications. If you do not change this setting now, be sure to update it so that your test user has access before you test your setup.

   This setting only applies to users who exist in Duo with "Active" status. This does not affect application access for existing users with "Bypass" status, existing users for whom the effective Authentication Policy for the application specifies "Bypass 2FA" or "Skip MFA", or users who do not exist in Duo when the effective New User Policy for the application allows access to users unknown to Duo without MFA.

4. The Metadata section contains OpenID provider information about Duo Single Sign-On you will provide to JFrog at a later configuration step.

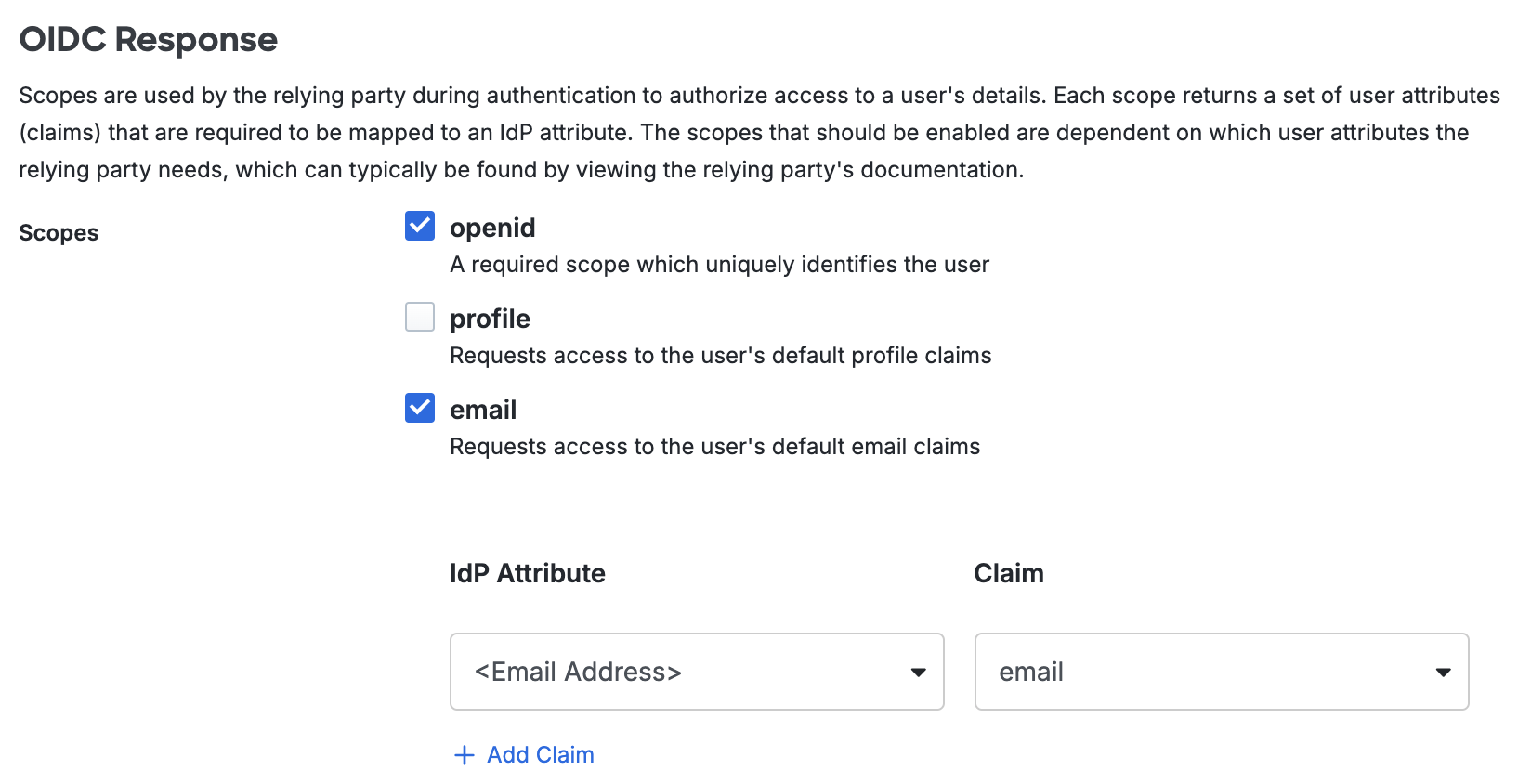

5. Scopes are used by JFrog during authentication to authorize access to a user's details. Each scope returns a set of user attributes (claims) that must be mapped to IdP attributes. When an application sends an OIDC request to Duo SSO, the response sends only the claims from the requested scopes.

   We've automatically enabled the following scopes and mapped the listed attributes. You can change the attribute sent from your authentication source by modifying the IdP Attribute name related to each claim:

   • Email Scope:

     IdP Attribute	Claim
     <Email>	email



6. You can adjust additional settings for your new SSO application at this time — like changing the application's name from the default value, enabling self-service, or assigning a group policy.

7. Keep the Duo Admin Panel tab open. You will come back to it later.

Duo Universal Prompt

The Duo Universal Prompt provides a simplified and accessible Duo login experience for web-based applications, offering a redesigned visual interface with security and usability enhancements.

Universal Prompt	Traditional Prompt

The Duo JFrog application supports the Universal Prompt by default, so there's no additional action required on your part to start using the newest authentication experience.

Activate Universal Prompt

Activation of the Universal Prompt is a per-application change. Activating it for one application does not change the login experience for your other Duo applications. Universal Prompt is already activated for new JFrog applications at creation.

The "Universal Prompt" area of the application details page shows that this application's status is "Activation complete", with these activation control options:

• Show traditional prompt: Your users experience Duo's traditional prompt via redirect when logging in to this application.
• Show new Universal Prompt: (Default) Your users experience the Universal Prompt via redirect when logging in to this application.

The application's Universal Prompt status shows "Activation complete" both here and on the Universal Prompt Update Progress report.

For the time being, you may change this setting to Show traditional prompt to use the legacy experience. Keep in mind that support for the traditional Duo prompt ended for the majority of applications in March 2024. This option will be removed in the future.

Universal Update Progress

Click the See Update Progress link to view the Universal Prompt Update Progress report. This report shows the update availability and migration progress for all your Duo applications. You can also activate the new prompt experience for multiple supported applications from the report page instead of visiting the individual details pages for each application.

Configure JFrog

1. Log into your JFrog account as an administrator.

2. In the web address bar, make a note of your server name. You will need it later.

   Example: If the URL in the web address bar is https://yourserver.jfrog.io/ui/admin, then your server name is yourserver.

3. At the top of the page, click the Administration tab.

4. In the sidebar menu, navigate to Authentication → OAuth SSO. The "OAuth SSO" page opens.

5. Click Create New Provider. The "Add New OAUTH Provider" page opens.

6. Make sure the Enabled checkbox is selected.

7. Make sure the PKCE Enabled checkbox is NOT selected.

8. Enter a unique name for your provider into the Provider Name field.

9. Click the Provider Type drop-down menu and select OpenID.

10. Return to the Duo Admin Panel. Under "Metadata", copy the following fields and paste them into their respective fields in JFrog:

    • Copy the Client ID and paste it into the JFrog Client ID field.

    • Copy the Client Secret and paste it into the JFrog Secret field.

    • Copy the Authorization URL and paste it into the JFrog Auth URL field.

    • Copy the UserInfo URL and paste it into the JFrog API URL field.

    • Copy the Token URL and paste it into the JFrog Token URL field.

11. In JFrog, click Save.

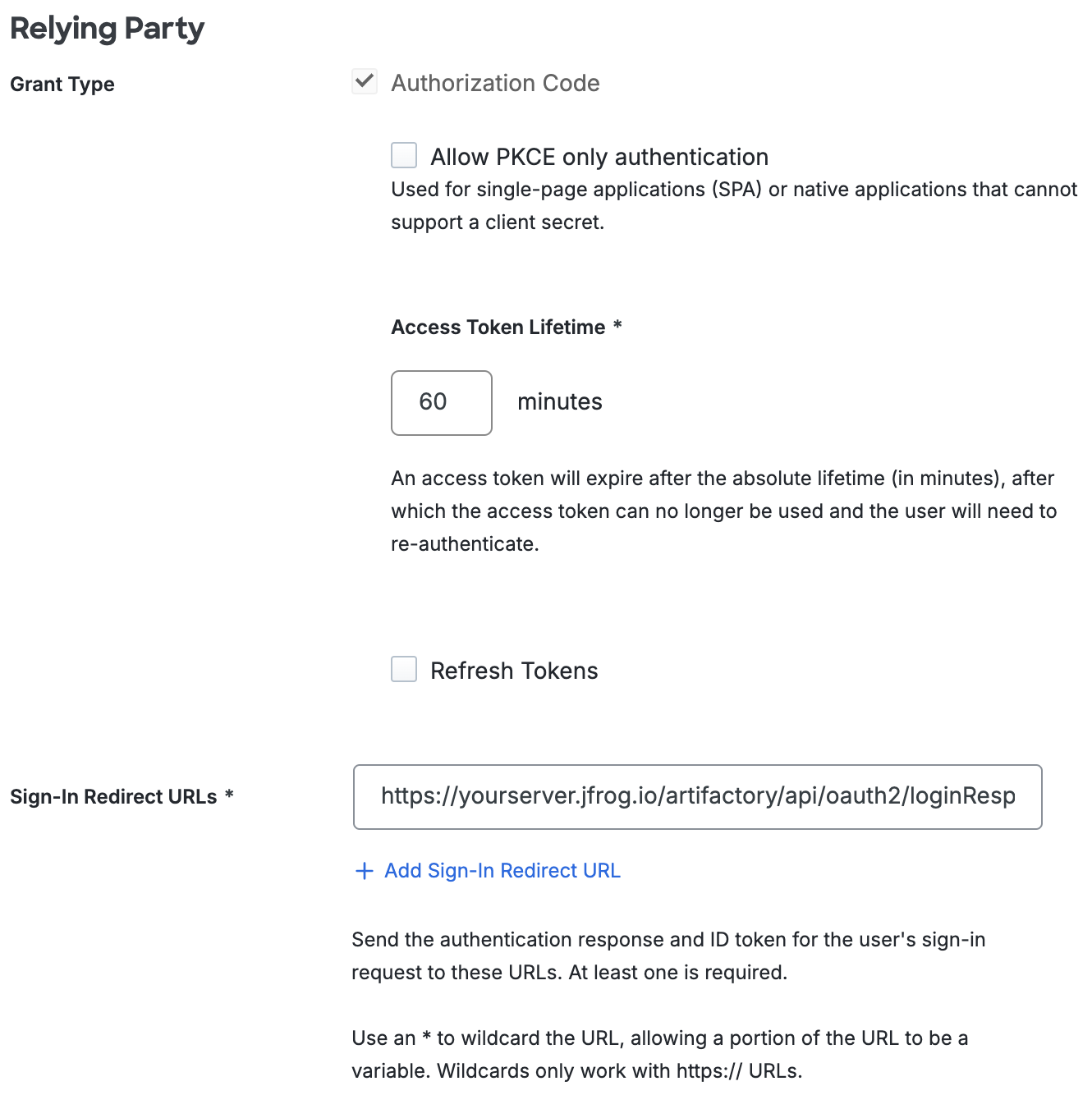

12. Return to the Duo Admin Panel. Under "Relying Party", type https://yourserver.jfrog.io/artifactory/api/oauth2/loginResponse using the server name you noted earlier.



13. In the Duo Admin Panel, scroll down to the bottom of the page and click Save.

Learn more about JFrog SSO at the JFrog Help Center.

Using SSO

You can log on to JFrog SSO by navigating to your JFrog SSO page using the server name you noted earlier e.g., https://yourserver.jfrog.io/ui/login. Click your provider tile to be automatically redirected to Duo Single Sign-On to begin authentication.

Active Directory Login

With Active Directory as the Duo SSO authentication source, enter the primary username (email address) on the Duo SSO login page and click or tap Next.

Enter the AD primary password and click or tap Log in to continue.

Enable Duo Passwordless to log in to Duo SSO backed by Active Directory authentication without entering a password in the future.

SAML Login

With another SAML identity provider as the Duo SSO authentication source, Duo SSO immediately redirects the login attempt to that SAML IdP for primary authentication. Users do not see the Duo SSO primary login screen.

Duo Authentication

Successful verification of your primary credentials by Active Directory or a SAML IdP redirects back to Duo. Complete Duo two-factor authentication when prompted and then you'll return to JFrog to complete the login process.

* Universal Prompt experience shown.

JFrog supports SP-initiated authentication only, meaning that you must start your SSO login from that application's sign-in page. You won't be able to add as an application tile in Duo Central for IdP-initiated logins.

Congratulations! Your JFrog users now authenticate using Duo Single Sign-On.

See the full user login experience, including expired password reset (available for Active Directory authentication sources) in the Duo End User Guide for SSO.

Grant Access to Users

If you did not already grant user access to the Duo users you want to use this application be sure to do that before inviting or requiring them to log in with Duo.

Enforce SSO

You can require that all users sign into JFrog using Duo Single Sign-On.

1. Log into your JFrog account as an administrator.

2. At the top of the page, click the Administration tab.

3. In the sidebar menu, navigate to Authentication → OAuth SSO. The "OAuth SSO" page opens.

4. Click the Enable OAuth checkbox. Your OAuth settings update automatically.

Enable Remembered Devices

To minimize additional Duo two-factor prompts when switching between and your other Duo Single Sign-On SAML applications, be sure to apply a shared "Remembered Devices" policy to your SAML applications.

Automated Provisioning

You may be able to create, manage, and delete users and groups in this application automatically from Duo using SCIM 2.0 provisioning. See Automated Provisioning to learn how.

Troubleshooting

Need some help? Try searching our Knowledge Base articles or Community discussions. For further assistance, contact Support.
