Duo Single Sign-On for BeyondTrust

Last Updated: June 29th, 2023

Add two-factor authentication and flexible security policies to BeyondTrust (formerly Bomgar) SAML 2.0 logins with Duo Single-Sign On. Our cloud-hosted SSO identity provider offers inline user enrollment, self-service device management, and support for a variety of authentication methods — such as passkeys and security keys, Duo Push, or Verified Duo Push — in the Universal Prompt.

Overview

As business applications move from on-premises to cloud hosted solutions, users experience password fatigue due to disparate logons for different applications. Single sign-on (SSO) technologies seek to unify identities across systems and reduce the number of different credentials a user has to remember or input to gain access to resources.

While SSO is convenient for users, it presents new security challenges. If a user's primary password is compromised, attackers may be able to gain access to multiple resources. In addition, as sensitive information makes its way to cloud-hosted services it is even more important to secure access by implementing two-factor authentication and zero-trust policies.

About Duo Single Sign-On

Duo Single Sign-On is our cloud-hosted SSO product which layers Duo's strong authentication and flexible policy engine on top of BeyondTrust logins. Duo Single Sign-On acts as an identity provider (IdP), authenticating your users using existing on-premises Active Directory (AD) or another SSO IdP. Duo SSO prompts users for two-factor authentication and performs endpoint assessment and verification before permitting access to BeyondTrust.

Duo Single Sign-On is available in Duo Premier, Duo Advantage, and Duo Essentials plans, which also include the ability to define policies that enforce unique controls for each individual SSO application. For example, you can require that Salesforce users complete two-factor authentication at every login, but only once every seven days when accessing BeyondTrust. Duo checks the user, device, and network against an application's policy before allowing access to the application.

Configure Single Sign-On

Before configuring BeyondTrust with Duo SSO using Security Assertion Markup Language (SAML) 2.0 authentication you'll first need to enable Duo Single Sign-On for your Duo account and configure a working authentication source.

Once you have your SSO authentication source working, continue to the next step of creating the BeyondTrust application in Duo.

Create the BeyondTrust Application in Duo

  1. Log on to the Duo Admin Panel and navigate to Applications.

  2. Click Protect an Application and locate the entry for BeyondTrust with a protection type of "2FA with SSO hosted by Duo (Single Sign-On)" in the applications list. Click Protect to the far-right to start configuring BeyondTrust. See Protecting Applications for more information about protecting applications in Duo and additional application options. You'll need the information on the BeyondTrust page under Downloads later.

  3. BeyondTrust uses the Mail attribute, Username attribute, First name attribute, and Last name attribute when authenticating. We've mapped the bridge attributes to Duo Single Sign-On supported authentication source attributes as follows:

    Bridge Attribute Active Directory SAML IdP
    <Email Address> mail Email
    <Username> sAMAccountName Username
    <First Name> givenName FirstName
    <Last Name> sn LastName

    If you are using non-standard attributes for your authentication source, check the Custom attributes box and enter the name of the attributes you wish to use instead.

  4. You can adjust additional settings for your new SAML application at this time — like changing the application's name from the default value, enabling self-service, or assigning a group policy.

  5. Keep the Duo Admin Panel tab open. You will come back to it later.

Duo Universal Prompt

The new Universal Prompt provides a simplified and accessible Duo login experience for web-based applications, offering a redesigned visual interface with security and usability enhancements.

Universal Prompt Traditional Prompt
 Duo Push in Universal Prompt  Duo Push in Traditional Prompt

We've already updated the Duo BeyondTrust application hosted in Duo's service to support the Universal Prompt, so there's no action required on your part to update the application itself. You can activate the Universal Prompt experience for users of new and existing Duo BeyondTrust applications from the Duo Admin Panel.

Before you activate the Universal Prompt for your application, it's a good idea to read the Universal Prompt Update Guide for more information about the update process and the new login experience for users.

Activate Universal Prompt

Activation of the Universal Prompt is a per-application change. Activating it for one application does not change the login experience for your other Duo applications.

The "Universal Prompt" area of the application details page shows that this application is "Ready to activate", with these activation control options:

  • Show traditional prompt: (Default) Your users experience Duo's traditional prompt via redirect when logging in to this application.
  • Show new Universal Prompt: Your users experience the Universal Prompt via redirect when logging in to this application.

Universal Prompt Info - Application Ready for Universal Prompt

Enable the Universal Prompt experience by selecting Show new Universal Prompt, and then scrolling to the bottom of the page to click Save.

Once you activate the Universal Prompt, the application's Universal Prompt status shows "Activation complete" here and on the Universal Prompt Update Progress report.

Universal Prompt Info - Universal Prompt Activation Complete

Should you ever want to roll back to the traditional prompt, you can return to this setting and change it back to Show traditional prompt. However, this will still deliver the Duo prompt via redirect, not in an iframe.

Universal Update Progress

Click the See Update Progress link to view the Universal Prompt Update Progress report. This report shows the update availability and migration progress for all your Duo applications. You can also activate the new prompt experience for multiple supported applications from the report page instead of visiting the individual details pages for each application.

Enable BeyondTrust for SSO

  1. Log into your BeyondTrust account as an administrative user.

  2. In the left menu sidebar, click Users & Security.

  3. Click the SECURITY PROVIDERS tab at the top of the page.

  4. Click ADD and then click SAML For Representatives.

  5. Return to the Duo Admin Panel. Under "Downloads", click Download XML.

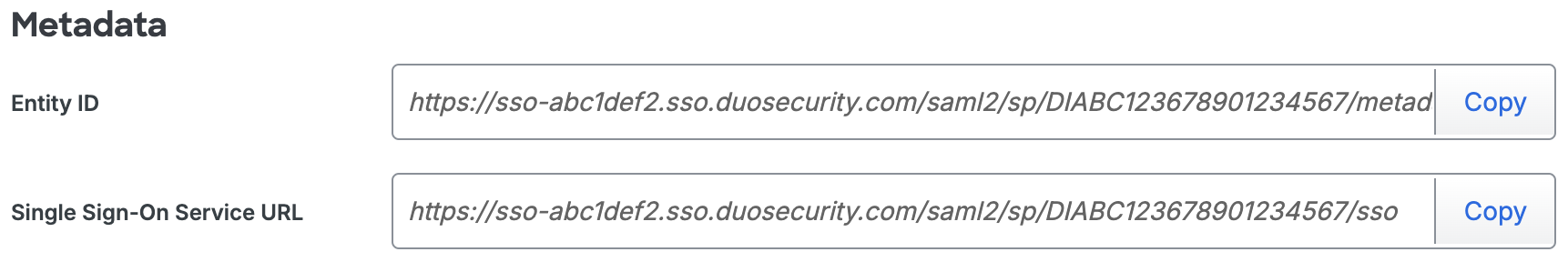

  6. Return to your BeyondTrust account page. Click UPLOAD IDENTITY PROVIDER METADATA and open the metadata file that was downloaded in the Duo Admin Panel. The Entity ID, Single Sign-On Service URL, and Server certificate fields are now populated.

    BeyondTrust Metadata Content From Duo XML File
  7. In your BeyondTrust account page under "Service Provider Settings", click DOWNLOAD SERVICE PROVIDER METADATA.

  8. Return to the Duo Admin Panel. Under "Service Provider", click Choose File and open the metadata file that was downloaded in your BeyondTrust account page.

  9. Return to your BeyondTrust account page. Under "User Attribute Settings", type Email in the Display Names field.

  10. Open the Default Group Policy drop-down menu and select General Members.

  11. Click Save at the top of the page.

  12. Return to the Duo Admin Panel. Type General Members into the Group Policy Mapping field.

  13. In the Duo groups drop-down menu, select the desired Duo group.

    Duo BeyondTrust Role Attributes Fields
  14. Scroll to the bottom of the page and click Save.

Learn more about BeyondTrust SSO at BeyondTrust Help.

Using SSO

You can log on to BeyondTrust by navigating to your BeyondTrust SSO page e.g., https://eval-uniqueid.beyondtrustcloud.com/login/login. Click Use SAML Authentication to be redirected to Duo Single Sign-On to begin authentication.

Active Directory Login

With Active Directory as the Duo SSO authentication source, enter the primary username (email address) on the Duo SSO login page and click or tap Next.

Duo Single Sign-On Login

Enter the AD primary password and click or tap Log in to continue.

Duo Single Sign-On Password

Enable Duo Passwordless to log in to Duo SSO backed by Active Directory authentication without entering a password in the future.

SAML Login

With another SAML identity provider as the Duo SSO authentication source, Duo SSO immediately redirects the login attempt to that SAML IdP for primary authentication. Users do not see the Duo SSO primary login screen.

Duo Authentication

Successful verification of your primary credentials by Active Directory or a SAML IdP redirects back to Duo. Complete Duo two-factor authentication when prompted and then you'll return to BeyondTrust to complete the login process.

Duo Universal Prompt

* Universal Prompt experience shown.

You can also log into BeyondTrust using Duo Central, our cloud-hosted portal which allows users to access all of their applications in one spot. Link to BeyondTrust in Duo Central by adding it as an application tile. Once the tile has been added, log into Duo Central and click the tile for IdP-initiated authentication to BeyondTrust.

Congratulations! Your BeyondTrust users now authenticate using Duo Single Sign-On.

See the full user login experience, including expired password reset (available for Active Directory authentication sources) in the Duo End User Guide for SSO.

Enable Remembered Devices

To minimize additional Duo two-factor prompts when switching between BeyondTrust and your other Duo Single Sign-On SAML applications, be sure to apply a shared "Remembered Devices" policy to your SAML applications.
